Tri-Axis Rotary Positioner

The Tri-Axis Rotary Positioner is an advanced automation solution engineered to manipulate workpieces across three independent rotational axes (A, B, C), enabling unparalleled flexibility for 3D welding, laser cutting, and precision machining. With synchronized 360° rotation, ±180° tilting, and 360° horizontal pivoting, it ensures optimal access to multi-angle joints and intricate geometries—ideal for aerospace components, medical devices, and automotive prototypes.

Designed for high-precision industries, this positioner handles loads up to 5,000 kg while maintaining micron-level repeatability (±0.01°). Its modular design integrates seamlessly with robotic arms, CNC systems, and vision inspection units, streamlining workflows for complex, low-volume production runs.

Tri-Axis Synchronization

Independent Axis Control: Program A (horizontal rotation), B (tilt), and C (pivot) axes simultaneously or sequentially.

Dynamic Path Planning: Create compound-angle trajectories for 5-axis robotic welding or milling.

Ultra-High Precision

Direct-Drive Servo Motors: Eliminate backlash for ±0.005° repeatability in micro-welding applications.

RTCP (Rotation Tool Center Point): Maintain toolpath accuracy during multi-axis motion.

Heavy-Duty Adaptability

Interchangeable Fixtures: Vacuum chucks, hydraulic clamps, or custom jigs for parts from 10 mm to 5 m.

Thermal Stability: Hardened alloy construction minimizes heat-induced deformation.

Smart Automation Integration

PLC/Robot Compatibility: Seamless communication with Fanuc, KUKA, ABB, and Siemens controllers via EtherCAT.

AI-Powered Path Optimization: Auto-adjusts motion sequences to reduce cycle time by 25%.

Safety & Durability

Collision avoidance sensors, emergency braking, and overload protection.

IP66-rated enclosures for harsh environments (foundries, chemical plants).

Future-Ready Design: Expandable to 5-axis systems with linear translation modules.

Energy Efficiency: Regenerative drives cut power consumption by 30%.

Global Service Network: On-site installation, training, and lifetime maintenance plans.

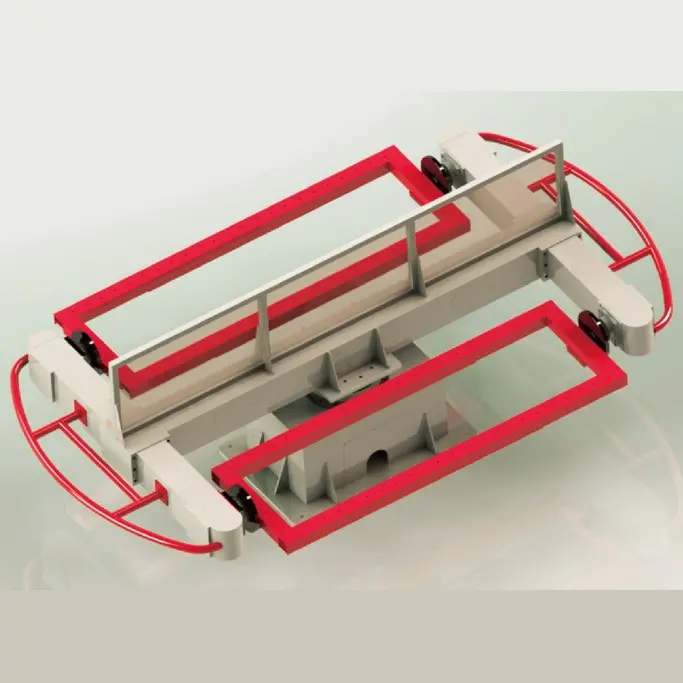

Three-axis horizontal rotation positioner

Three-axis vertical rotation positioner
